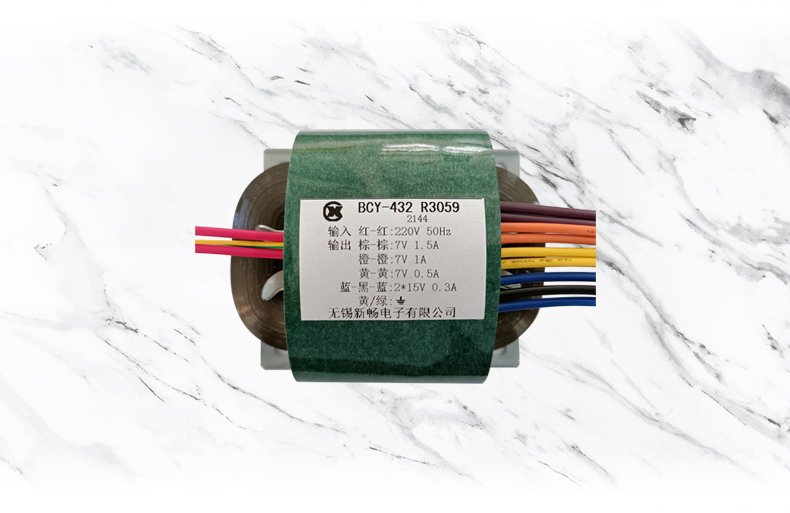

　| R-Transformer >> R-Transformer 　

Our advantage



R&D Strength	Quality assurance (QA)

More than 20 years of industry development experience Wuxi recognized enterprise technology center Dozens of patented technologies	Enterprise implementation of IS9000 program Products passed UL TUV CE CQC certification Production automation, test automation


Customized production	Honest Service

Follow the client's ideas and needs Create personalized and customized services Automated production for first-class products	Customer First Integrity Service AAA trustworthy enterprise Development with customers

Perfection comes from the persistence and constant pursuit of quality

Application

R-type transformers are characterized by no noise, small magnetic leakage, small no-load current, low iron loss and high efficiency. R-type transformers are widely used in the fields of transportation, medical treatment, communication and sound source. The products have the advantages of small size, strong impact resistance and easy installation.

Details

Parameter

Note:The following table shows the reference information of regular R-type transformer,
which can be designed and produced according to the drawing or parameter requirements.

Model	Power Capacity (VA)	Overall Dimension (A L x B W x C H mm)	Mounting Dimension (a*b hole mm)	Weight (kg)
R-5	~7	604727	45*30	0.2
R-8	~10	715531	53*44	0.3
R-10	8~15	756137	68*48	0.4
R-15	15~22	797043	50*55	0.5
R-20	20~28	827039	50*55	0.5
R-25	25~35	857242	70*55	0.6
R-30	30~45	967742	70*60	0.7
R-35	45~60	1008046	84*64	0.9
R-40	35~55	998044	70*60	0.9
R-50	45~65	1029248	75*65	1.0
R-65	55~75	1059260	90*60	1.2
R-80	70~100	12510352	90*70	1.4
R-100	90~130	12511555	100*80	1.7
R-160	150~200	13811563	100*85	2.6
R-260	200~300	15612166	130*95	3.1
R-320	280~380	16312870	135*95	3.8
R-600	380~650	18214585	145*115	6.5
R-800	650~850	19015788	145*115	6.5
R-1000	650~1200	22717299	174*140	10.5
R-1500	1300~1800	237191102	175*145	14
R-2000	1800~2500	251197111	175*165	16.5
R-3000	2500~3500	260226125	200*180	23.5
R-3600	3500~4000	275233122	200*182	24
R-5000	4000~5500	320135285	235*110	42
